HIGH LIGHT
DISPLAY
IT LET YOU MONITOR BATTERY LIFE,SPEED,PADLE-ASSIST MODE,MILES RIDDEN AND MORE,AND MORE BATTERY RANGE,AUTO BOOST.
HYBRID
SPECIALLY DESIGNED TO MAKE EVERY RIDE SMOOTH WETHER IT IS CITY RIDING.
MOBILE APP
CONNECT WIRELESSLY WITH SMARTPHONE,SHOW YOUR HISTORY,PERFORMANCE AND COMMUNITY.
ELEGANT FRAME
6082-T6 AERO SPACE ALUMINUM FRAME MATERIAL VINTAGE ELEGANT DESIGN.
BATTERY POWER
STROG BATTERY POWER THAT LONG LAST UP TO 25 MILES AND PERFECT FOR EVERY RIDE.
DISBRAKE
FRONT AND REAR HYDRAULIC DISC BRAKE.
USB RECHARGE
USB RECHARGE FOR 3C PRODUCTS.
BELT SYSTEM
MULTIPLE,OVER 10000KMS,ENVIRONMENT RECYCLE MATERIAL.
Bike Specification
| TECHICAL SPECS PEDAL ASSIST SYSTEM | ||
|---|---|---|
| US Version | EU Version | |
| Power | 48V350W - 40Nm | 36V250W - 30Nm |
| Can Bus Communication No Halls | ||
| Frame | 6082 Aero Space Aluminium | |
| Fork | 6082 Aero Space Aluminium | |
| Display | Acer-Xplova Smart AioT | |
| Battery | 7AH Samsung Cell | 10.5AH Samsung Cell |
| Drive System | DTS Carbon Belt Drive 10000 Kms Life Cycle Ride | |
| Speed | 20mph(32Kms) | 25Kms |
| Brake | Bangle Hydraulic Disc Drake F/R | |
| Tire | 28inch * 42C Maxxis | |
| Charge | 42V 3A charger 3H | |
| Pedal | Aluminium Anti-Slip CNC | |
| Grip | Classic | |
| Saddle | Comfort | |

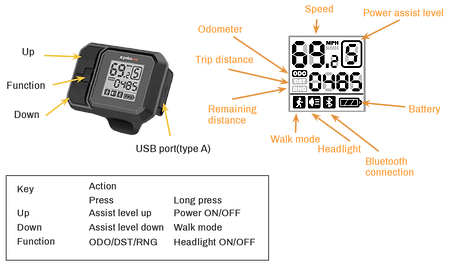

I/O & Data Fields
Display Specification
| Size | L 43mm x W 60mm x H 51mm |
|---|---|
| Weight | 48g |
| Material | PC |
| Screen Type | 1.4" TN LCD w/ LED back-light |
| Power | DC 24/36/48V |
| Current | 4.8mA |
| Operating Temperature | -20°C ~ 45°C |
| Water Rating | IP65 |
| Protocol | CAN/CANopen |
| Physical Keys | 3 (Up/Down/Function) |
| Wireless Interface | Bluetooth Smart |
| Data Port | USB |
| Charging Output | 5V/500mA |
| Functions | PAS Level/Speed/ODO/Trip/Walk/Battery Status/Light Status/Error Status |
